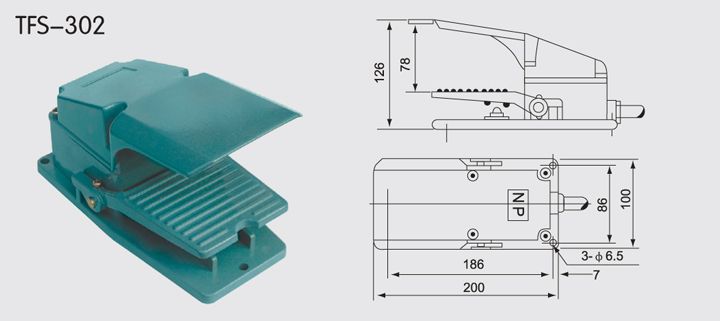

TFS-302 304 Half protective guard Aluminum Cast Foot Switch
■ Aluminum shell，aluminum or plastic base for choosing.
■ Inside TM-1704 micro switch made by TMAZTZ, lead the best quality guarantee.
■ Protective guard type for machine tool.
■ 302/304 means the number of inner micro switch (1 and 2).
Product List
Technical Parameters
Characteristics
| Designation | Model | Rating | Type of switch enclosed &contact arrangement | Cable type / length | Cantact | Action force | Material of Rind |
| Protective guard foot switch | TFS-302 | 15A 250VAC | TM-1704
| Accessory: Cable gland (No cable) | 1A1B | 3.2kg | t |
| TFS-304 | 15A 250VAC | TM-1704 x 2
| 2A2B | 3.2kg | |||
| TFS-502 | 15A250VAC | TM-1704 | 1A1B | 3.2kg | |||
| TFS-504 | 15A250VAC | TM-1704 | 2A2B | 3.2kg | |||
| TFS-602 | 15A250VAC | Button spring type | 2*1A1B | 2.8kg | |||
| TFS-702 | 15A250VAC | TM-1704 | 2*1A1B | 3.2kg | |||
| Large type | TFS-402 | 15A250VAC | TM-1704 | 1A1B | 3.2kg | ||
| TFS-404 | 15A 250VAC | TM-1704 x 2 | 2A2B | 3.2kg | |||
| TFS-802 | 15A 250VAC | TM-1704 | 2*1A1B | 3.2kg |
