Limit switches are essential components in various industrial and commercial applications, providing a means to control and monitor the movement of machinery and equipment. These switches are designed to detect the presence or absence of an object, as well as to limit the movement of a mechanical system. There are several types of limit switches, each with its own unique characteristics and applications.

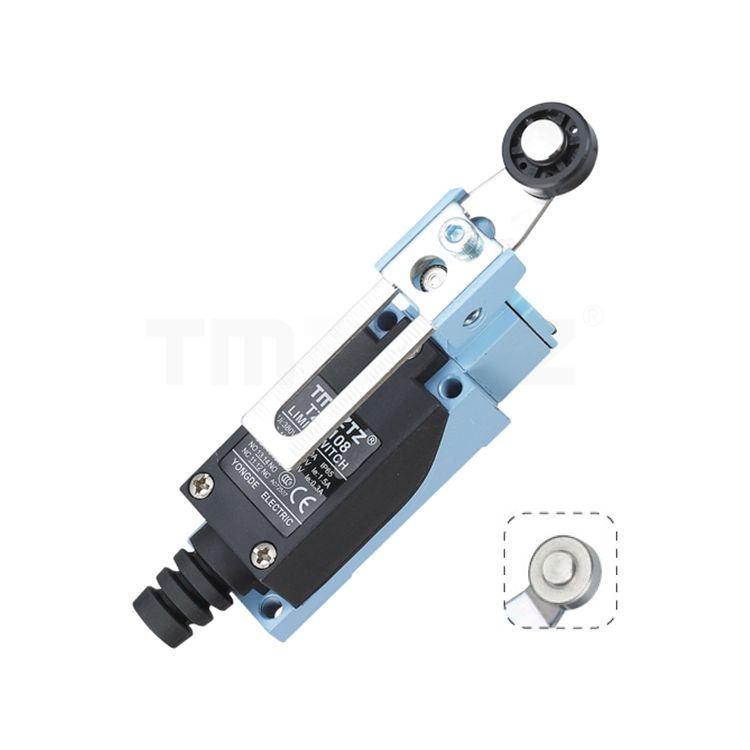

One of the most common types of limit switches is the mechanical limit switch. This type of switch uses a physical mechanism, such as a lever or roller, to actuate the switch when it comes into contact with an object or reaches a specific position. Mechanical limit switches are widely used in conveyor systems, packaging machinery, and automated production lines due to their reliability and durability.
Another type of limit switch is the proximity limit switch, which uses non-contact sensing technology to detect the presence of an object. Proximity limit switches can be based on various principles, including inductive, capacitive, or photoelectric sensing. These switches are ideal for applications where physical contact with the object is not desirable, such as in dusty or corrosive environments.
In addition to mechanical and proximity limit switches, there are also rotary and linear limit switches. Rotary limit switches are designed to monitor the rotational movement of a shaft or cam, while linear limit switches are used to detect the linear movement of a component, such as a sliding door or a hydraulic cylinder. These types of limit switches are commonly found in heavy machinery, cranes, and material handling equipment.
Each type of limit switch has its own set of characteristics that make it suitable for specific applications. For example, mechanical limit switches are known for their high precision and repeatability, making them ideal for applications that require accurate positioning and control. Proximity limit switches, on the other hand, are valued for their non-contact operation, which reduces wear and tear and extends the lifespan of the switch.
When selecting a limit switch for a particular application, it is important to consider factors such as the operating environment, the type of motion being monitored, and the required level of precision. For example, in a harsh industrial environment with high levels of dust and moisture, a proximity limit switch with IP67 or IP68 protection rating would be more suitable than a mechanical limit switch.
Furthermore, the choice of actuator type is also crucial in determining the performance of a limit switch. Actuators can be in the form of levers, rollers, plungers, or whisker switches, each offering different mechanical advantages and limitations. Understanding the specific requirements of the application is essential in selecting the most appropriate actuator type for the limit switch.
In conclusion, limit switches are essential components in industrial automation and control systems, providing a means to monitor and limit the movement of machinery and equipment. With various types and characteristics available, it is important to carefully consider the specific requirements of the application when selecting a limit switch. By understanding the unique features and capabilities of each type of limit switch, engineers and designers can ensure the reliable and efficient operation of their systems.
