What Are the Ratings on Toggle Switches?

Jan. 24, 2024

Toggle switches, commonly used in electronic and electrical applications, have various specifications and ratings that indicate their performance characteristics. The key ratings associated with toggle switches include:


Current Rating (Amperes):

The current rating, measured in amperes (A), indicates the maximum current that the toggle switch can safely handle without overheating. It is crucial to choose a toggle switch with a current rating that matches or exceeds the current requirements of the circuit.


Voltage Rating (Volts):

The voltage rating specifies the maximum voltage that the toggle switch can handle safely. It is essential to choose a toggle switch with a voltage rating that meets or exceeds the voltage requirements of the circuit.


Pole and Throw Configuration:

Toggle switches can have different pole and throw configurations, such as SPST (Single Pole, Single Throw), SPDT (Single Pole, Double Throw), DPST (Double Pole, Single Throw), and DPDT (Double Pole, Double Throw). These configurations determine the number of circuits the switch can control and the number of positions it can be in.

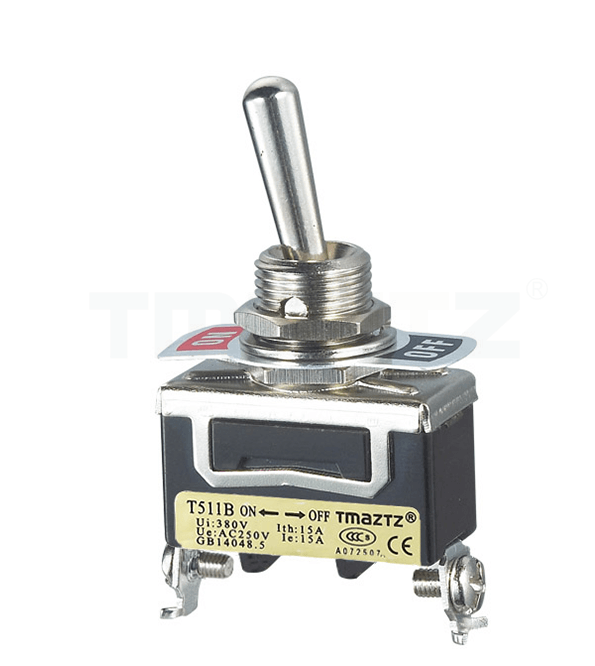

Toggle Switch

Toggle Switch

Contact Type:

Toggle switches can have different types of contacts, including momentary or maintained contacts. Momentary contacts return to their original position when released, while maintained contacts stay in their position until manually changed.


Actuation Force:

The actuation force is the amount of force required to move the toggle switch between its positions. It is essential to consider the actuation force to ensure ease of use and to meet the requirements of the application.


Life Cycle:

The life cycle, often given in terms of cycles, represents the number of times the toggle switch can be actuated before its performance may degrade. A higher life cycle indicates a more durable switch.


Environmental Ratings:

Toggle switches designed for specific environments may carry ratings such as NEMA (National Electrical Manufacturers Association) or IP (Ingress Protection) ratings. These ratings indicate the switch's resistance to dust, water, and other environmental factors.


Terminal Type:

Toggle switches may have different terminal types, such as solder terminals, screw terminals, or quick-connect terminals. The choice of terminal type depends on the installation and wiring requirements.


Temperature Rating:

The temperature rating specifies the range of temperatures within which the toggle switch can operate effectively. It is important to choose a switch with a temperature rating suitable for the intended application environment.


Certifications:

Some toggle switches may have certifications from relevant standards organizations, such as UL (Underwriters Laboratories) or CSA (Canadian Standards Association), ensuring that they meet specific safety and performance standards.


When selecting a toggle switch for a particular application, it's crucial to carefully review the manufacturer's specifications and choose a switch with ratings that align with the electrical and mechanical requirements of the system. Using a switch with inappropriate ratings can lead to malfunctions, safety hazards, or premature failure.
