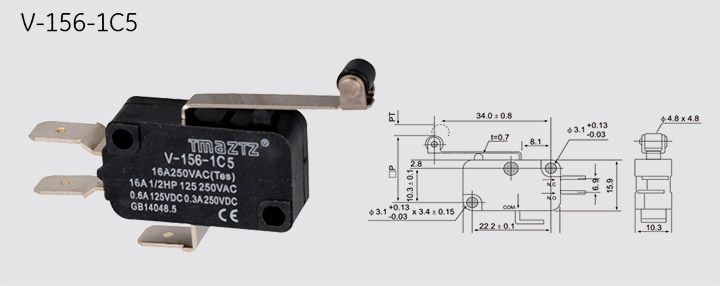

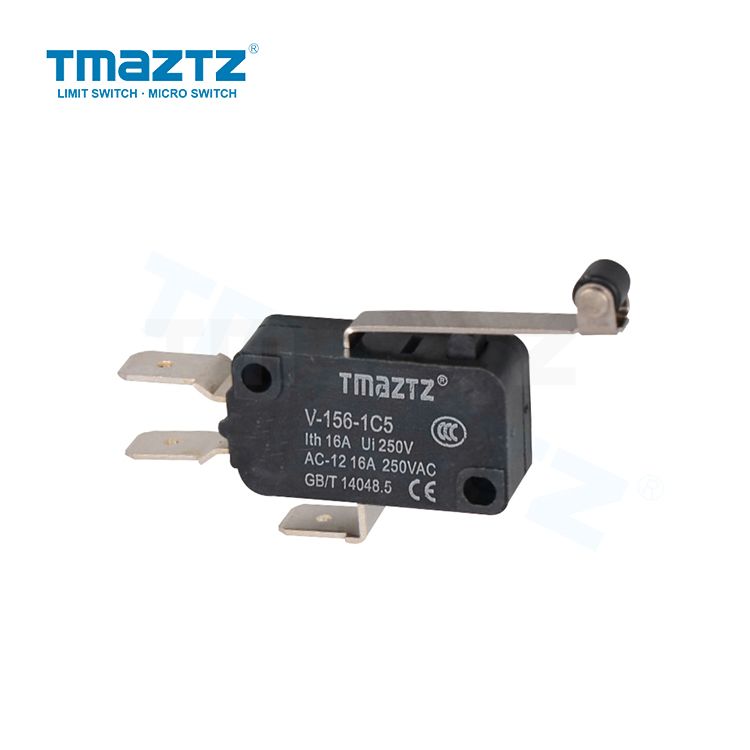

V-156-1C5 Micro Switch

High accuracy of action position;

Good shock resistance, maximum 1000m/s2;

High-strength shell, when mounting, the plastic shell can withstand torsional moment of 6kgf.cm without break.

V-15-1C25 RV16 Micro Switch

Product List

Technical Parameters

V-156-1C5 Micro Switch

Ratings

Item nominal voltageNoninductive Load (A)Inductive Load (A)Inrush Current(A)
Spec.Resistance LoadLamp LoadInductive LoadMotor Load
NCNONCNONCNONCNONCNO
16A250VAC16210340max.
8VDC164106
30VDC104104
125VDC0.60.10.60.1
250VDC0.30.050.30.05


Characteristics

Operation speed0.1mm~1m/s( Button type)
Operating frequencyElectrical:20 operations/min
Insulation resistance100MΩ above(at 500VDC)
Contact resistance15mΩmax. (initial value)
Withstand voltageNon-continuous terminals1,000VAC, 50/60Hz  Continue1min

current-carrying and non-current-carrying metal parts,

Between terminal and earthing

2,000VAC, 50/60Hz  Continue1min
VibrationMisoperation10 to 55Hz,1.5mm pairs swing
ShockMisoperationMax 300m/S2(about 100G)
Temperature-10~+65℃(no ice)
HumidityUnder 85%RH(+5~+35℃)
WeightApprox 6.2g (button type)
Electrical life
Above300000


Operating Characteristics

Operating CharacteristicsModelV-15V-151V-152V-153V-154V-155V-156
Operating forceOF  (Max)1.96N1.96N1.23N0.69N1.23N2.35N1.23N
Release forceRF  (Min)0.49N0.49N0.14N0.06N0.14N0.49N0.14N
Pre-travelPT  (Max)1.2mm1.6mm4.0mm9.0mm4.0mm1.6mm4.0mm
Over-travelOT  (Min)1.0mm0.8mm1.6mm2.0mm1.6mm0.8mm1.6mm
Movement differentialMD (Max)0.4mm0.6mm1.5mm2.8mm1.5mm0.6mm1.5mm
Operational positionOP14.7±0.4mm15.2±0.5mm15.2±1.2mm15.2+2.6mm
15.2-3.2mm
18.7±1.2mm20.7±0.6mm20.7±1.2mm
//
