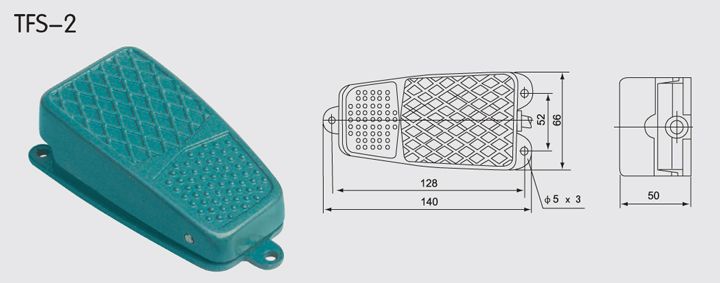

TFS-2 16A Plastic Shell Momentary Action Foot Switch
■ Metal shell& smaller size than TFS-3 or TFS-101
■ Inside micro switch made by TMAZTZ, lead the best quality guarantee.
■ Protective guard type for machine tool.
Product List
Technical Parameters
The TFS-2 16A Plastic Shell Momentary Action Foot Switch is a high-performance foot-activated switch designed for hands-free control in industrial, medical, and other applications requiring temporary activation. With a durable plastic housing and 16A current rating, it combines reliability and convenience for a wide range of uses.
Key Specifications
Model: TFS-2
Current Rating: 16A
Voltage Rating: Typically 250VAC or compatible low-voltage DC systems.
Material: High-strength plastic shell for lightweight and corrosion-resistant operation.
Action Type: Momentary
The circuit is activated only when the foot pedal is pressed.
Switch Configuration: SPDT or DPDT (depending on the variant).
Size and Design:
Compact, with ergonomic design for comfortable foot operation.
Non-slip pedal surface.
Cable Entry: Designed for secure cable connections, typically via a sealed entry point to prevent dust and moisture ingress.
Characteristics
| Designation | Model | Rating | Type of switch enclosed &contact arrangement | Cable type / length | Cantact | Action force | Material of Rind |
| Standard type Momentary Action | TFS-101 | 16A 250VAC | V15 micro switch | 0.75mm2,3C/0.5 meter,1 meter~3 meter | 1A1B | 1.2kg | Plastic |
| TFS-102 | 15A 250VAC | TM-1704 | 0.75mm2,3C/1 meter,1.5 meter~2 meter | 1A1B | 1.1kg | ||
| TFS-3 | 16A 250VAC | V15 micro switch | 0.75mm2,3C/0.5 meter,1 meter~3 meter | 1A1B | 1.2kg | Aluminum Cast | |
| TFS-3S | 15A 250VAC | TM-1704 | 0.75mm2,3C/1 meter,1 meter~3 meter | 1A1B | 1.1kg | ||
| Standard type Alternate action | TFS-105 | 6A 250VAC | TS-105 | 0.75mm2 ,2C/1 meter,1 meter~2 meter | PUSH ON PUSH OFF | 2kg | Plastic |
| Mini foot switch Front end push | TFS-201 | 16A 250VAC | V15 micro switch | 0.5mm2,3C/1 meter~3 meter | 1A1B | 0.7kg | Plastic |
| TFS-01 | 16A 250VAC | V15 micro switch | 0.5mm2,3C/1 meter~3 meter | 1A1B | 0.7kg | ||
| TFS-1 | 16A 250VAC | V15 micro switch | 0.5mm2,3C/1 meter~3 meter | 1A1B | 0.9kg | Iron | |
| Protective guard foot switch | TFS-302 | 15A 250VAC | TM-1704 | Accessory: M20X1.5 Cable gland (No cable) | 1A1B | 3.2kg | Aluminum Cast |
TFS-304 | 15A 250VAC | TM-1704 x 2 | 2A2B | 3.2kg | |||
| TFS-502 | 15A250VAC | TM-1704 | 1A1B | 3.2kg | |||
| TFS-504 | 15A250VAC | TM-1704 | 2A2B | 3.2kg | |||
| TFS-602 | 15A250VAC | Button spring type | 2*1A1B | 2.8kg | |||
| TFS-702 | 15A250VAC | TM-1704 | 2*1A1B | 3.2kg | |||
| Large type | TFS-402 | 15A250VAC | TM-1704 | 1A1B | 3.2kg | ||
| TFS-404 | 15A 250VAC | TM-1704 x 2 | 2A2B | 3.2kg | |||
| TFS-802 | 15A 250VAC | TM-1704 | 2*1A1B | 3.2kg |
Plastic Shell Momentary Action Foot Switch Features
Durable Plastic Shell
Resistant to corrosion, wear, and impact, making it suitable for various environments.
High Current Capacity
Rated at 16A, capable of handling moderate to high-power devices and equipment.
Momentary Action
Provides safety and precision, as the circuit is only active while pressure is applied.
Compact and Lightweight
Ideal for portable setups and applications where space is limited.
Safety Features
Non-slip pedal design and plastic insulation reduce the risk of accidents.
Versatile Mounting
Can be used as a free-standing unit or securely mounted to a surface.
