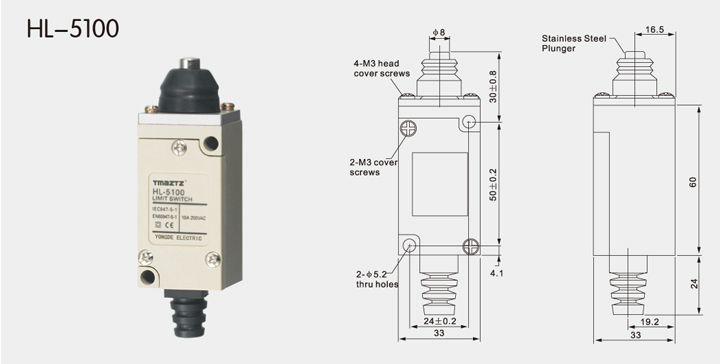

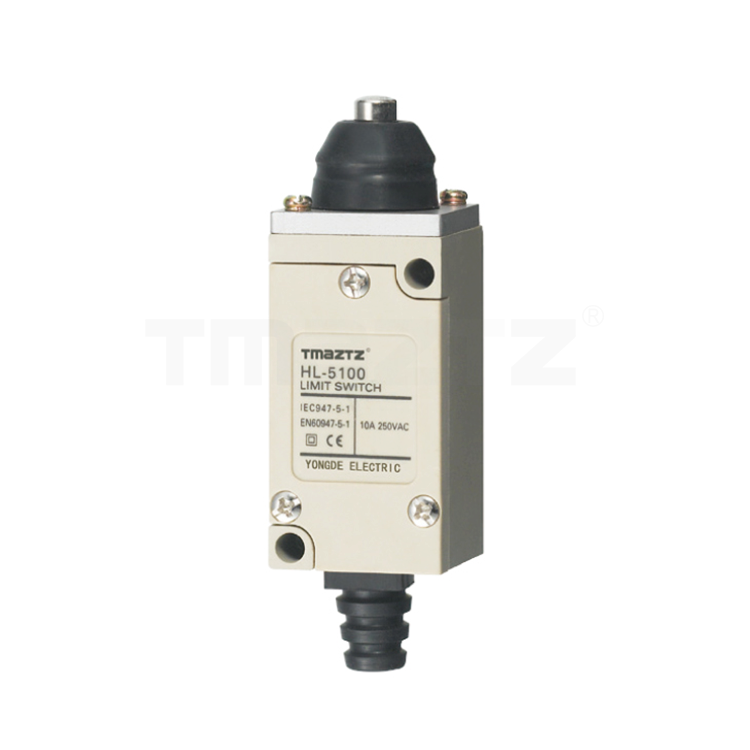

HL-5100 sealed plunger actuator Limit Switch
■ The Head, Box, and Cover mate with ridged surfaces to maintain strength.
■ A unique Head structure provides a large OT for smooth operation.
■ Easy-to-wire conduit opening design.
■ Ideal for application in printing machines, forming machines, and light
■ Machines.(High Switches with high sealing characteristics, such as WL or TZ-3 Switches, in locations subject to oil, water, or precipitation.)
■ Models with grounding terminals conform to the CE marking.
■ Contact Form:
Product List
Technical Parameters
额定值 Ratings
| 额定电压Rated voltage | 非电感性负载Noninductive Load (A) | 电感性负载Inductive Load (A) | ||||||
| 电阻性负载Resistance Load | 灯泡负载 Lamp Load | 电感性负载Inductive Load (A) | 电动机负载Motor Load | |||||
| NC | NO | NC | NO | NC | NO | NC | NO | |
| AC125V | 5 | 1.5 | 0.7 | 3 | 2 | 1 | ||
| AC250V | 5 | 1 | 0.55 | 3 | 1.5 | 0.8 | ||
| DC12V | 5 | 3 | 4 | 3 | ||||
| DC24V | 5 | 3 | 4 | 3 | ||||
| DC125V | 0.4 | 0.2 | - | - | - | |||
| DC250V | 0.4 | 0.2 | - | - | - | |||
| 浪涌电流 Surge current | NC | 24A以下(under) | ||||||
| NO | 12A以下(under) | |||||||
注：
1、上述数值表示稳定电流。
2、所谓感性负载， 就是功率因数0.4以上 (AC)、 时间常数7ms以下 (DC) 的负载。
3、所谓灯负载， 就是有10倍的浪涌电流的负载。
4、所谓电动机负载， 就是有6倍的浪涌电流的负载。
NOTES:
1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load
has an inrush current of 6 times the steady-state current.
3.Product with spring, its usable range of operating part is within one third of the whole.
spring length from the front end of spring.
特性 Characteristics
| 防护等级 Degree of protection | IP65 | |
| 容许操作速度Allowable operating speed | 5mm/s~0.5m/s | |
| 容许操作频率Allowable operating frequency | 机械: 120次/分 电气: 30次/分 Mechanical: 120 operations/minute Electical: 30 operations/minute | |
| 接触电阻Contact resistance | 25mΩ以下(初期)25mΩ max. (initial value) | |
| 绝缘电阻Insulation resistance | 100MΩ以上(在500VDC)100mΩ min. (at 500VDC) | |
| 绝缘强度 Insulation strength | AC1000V，50/60Hz，1分钟，同极端子间 AC1000V, 50/60Hz, 1 minutes, homopolar between terminals | |
| AC1500V，50/60Hz，1分钟，在带电金属部件和接地之间 AC1500V, 50/60Hz, 1 minutes, between the charged metal parts and the ground | ||
| AC1500V，50/60Hz，1分钟，在每个端子和非带电金属部件之间 AC1500V, 50/60Hz, 1 minutes, between each terminal and non charged metal parts | ||
| 额定频率 Rated frequency | 50/60Hz | |
| 耐振动Vibration | 误动作Misoperation | 10至55Hz, 双振幅1.5mm 10-55Hz, 1.5mm double amplitude |
| 耐冲击Shock | 毁坏:1,000m以下，误动作:最大300m/S2 Misoperation: Less than 1, 000m, Malfunction: 300m/S2 | |
| 使用环境温度Ambient Temp | -5℃~+65℃ (没有结冰With no icing) | |
| 使用环境湿度Ambient humidity | 35%~95%RH | |
| 质量 Quality | 约130~90g About 130~90g | |
动作特性 Operating Characteristics
| 动作特性Operating Characteristics | 型号 Model | HL-5000 | HL-5030 | HL-5050 | HL-5391 | HL-5100 | HL-5200 5220 | HL-5300 5330 5381 | HL-5030 | HL-5050 |
| 动作力Operating force | OF 最大 (Max) | 7.35N | 7.35N | 7.35N | 7.35N | 8.83N | 8.83N | 1.47N | 3.09N | 1.60N |
| 回复力Release force | RF 最小 (Min) | 0.98N | 0.98N | 0.98N | 0.98N | 1.47N | 1.47N | 一 | 0.41N | 0.22N |
| 预行程Pre-travel | PT 最大 (Max) | 20° | 20° | 20° | 20° | 1.5mm | 1.5mm | 30mm | ||
| 过行程Over-travel | OT 最小 (Min) | 50° | 50° | 50° | 50° | 4mm | 4mm | 一 | ||
| 应差距离Movement differential | MD 最大 (Max) | 12° | 12° | 12° | 12° | 1mm | 1mm | 一 | ||
| 动作位置Operational position | OP | 一 | 一 | 一 | 一 | 30±0.8mm | 40±0.8mm | 一 |
注：使用臂长或杆长为31.5mm的类型测得。
OF和RF在臂长为75mm(对于5030)以及145mm(对于5050，参考值)时测得。
NOTE: Above data based on the lever length:31.5mm of tmaztz HL series.
OF and RF base on lever length 75mm(HL-5030)and 145mm(HL-5050).
