Micro switches, also known as limit switches or snap-action switches, are essential components in a wide range of industrial, commercial, and consumer applications. These small, highly reliable switches play a pivotal role in controlling circuits, triggering actions, and ensuring safety in various equipment and machinery. Whether you're designing a new system or replacing an old switch, choosing the right micro switch is crucial to ensure the performance, longevity, and safety of your application. In this guide, we’ll walk you through the key considerations and factors to help you choose the best micro switch for your needs.
A micro switch is a type of electrical switch that is activated by a small mechanical movement, typically through a lever or button. They are called "micro" because they require minimal physical movement to activate, and their snap-action mechanism allows for quick and reliable operation. Micro switches are used to control various functions, such as turning a device on or off, detecting position changes, or limiting mechanical movements in devices ranging from appliances to industrial machinery.
Micro switches are designed for durability and long life, often with a rated lifespan of millions of actuations, making them ideal for applications where reliability and longevity are paramount.
Choosing the right micro switch involves several key considerations that align with the requirements of your application. Let’s explore the most important factors to keep in mind when selecting a micro switch:
The actuation type refers to how the micro switch is triggered or activated. There are different styles of actuation, each suitable for specific applications. The common types include:
Plunger Actuation: The plunger presses directly into the switch, making contact and activating the mechanism. Ideal for simple applications where direct push activation is needed.

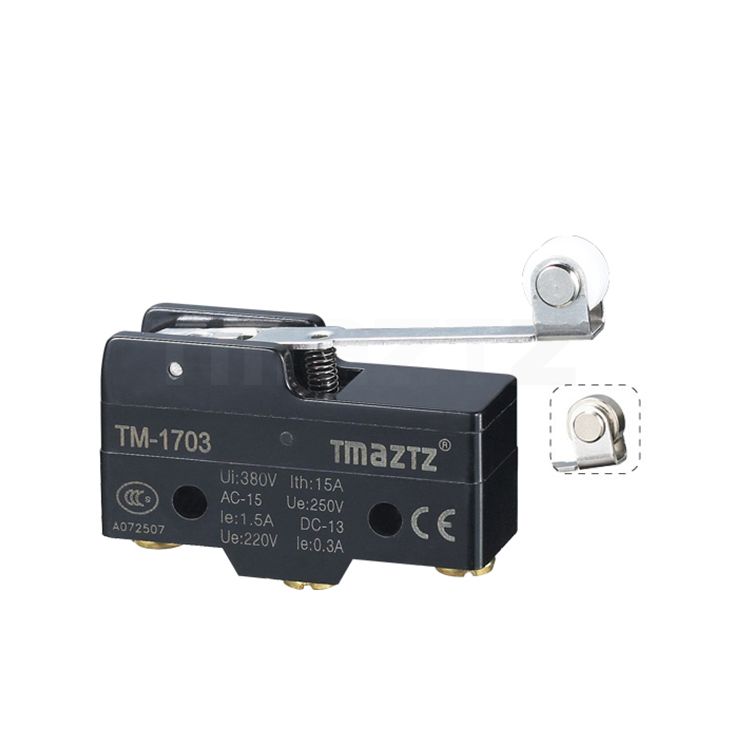

Roller Actuation: This type uses a roller to press against an object and activate the switch. Rollers are best used in applications where the switch needs to detect motion or movement along a surface, such as conveyor systems or door mechanisms.
Lever Actuation: A lever is used to actuate the switch, typically providing more force and control. Levers are ideal for heavy-duty applications where greater mechanical leverage is needed.
Side Push Actuation: A side push mechanism is activated by a side-pressure applied to the switch. These are commonly used in applications where space is limited or where the switch needs to be activated from the side.
Understanding the type of actuation that will work best for your system helps ensure smooth, reliable operation.
The electrical rating indicates the amount of current and voltage that the micro switch can safely handle. It's essential to select a switch with an electrical rating that matches or exceeds the requirements of your circuit. Micro switches come in different ratings, including:
Low-Voltage (LV): These micro switches are designed for applications that handle small voltage levels, often under 30V AC/DC. They are commonly used in consumer electronics, small appliances, and automotive systems.
High-Voltage (HV): Designed to handle higher voltages (above 250V), these switches are used in industrial machinery, large electrical systems, and heavy-duty applications.
Current Rating: The switch’s current rating determines how much current it can safely carry without overheating or failing. Choose a micro switch that can handle the maximum current your application requires.
Make sure to check both the voltage and current ratings for compatibility with your application to prevent circuit damage or switch failure.
Micro switches come in various sizes and shapes, so choosing one that fits within your available space is critical. Some switches are compact and ideal for tight spaces, while others may have larger enclosures designed to house more complex internal mechanisms. Consider the following:
Size: Ensure the switch fits within your device’s physical dimensions without compromising the functionality of other components. Compact switches are ideal for smaller appliances or equipment, while larger switches may be necessary for heavy-duty applications.
Mounting Type: Different micro switches offer various mounting options, including panel mounting, screw mounting, and snap-action mounts. Choose the mounting style that aligns with your design needs.
Micro switches are often exposed to harsh environments, including extreme temperatures, humidity, dust, or chemicals. Selecting a switch that can withstand these environmental conditions is vital for ensuring durability and reliable performance. Consider the following factors:
Temperature Range: Ensure that the micro switch is rated for the temperature range of your environment. Some switches are designed for use in high-temperature industrial settings, while others are made for low-temperature applications like refrigeration.
Ingress Protection (IP) Rating: The IP rating indicates the switch’s resistance to dust and water. For outdoor or industrial use, look for switches with a high IP rating (e.g., IP67 or higher) to ensure they are protected against moisture and debris.
Corrosion Resistance: If your application involves exposure to chemicals, salt, or other corrosive elements, select a micro switch with corrosion-resistant materials, such as stainless steel or specially coated parts.
Micro switches are designed to last for millions of operations, but the mechanical life of the switch can vary depending on its construction and the nature of its use. Look for the following when evaluating durability:
Cycle Life: This refers to the number of operations the switch can perform before it wears out. For demanding applications, choose a micro switch with a higher cycle life (e.g., 10 million cycles or more).
Shock and Vibration Resistance: If the switch will be exposed to frequent movement, vibrations, or shock, look for switches with enhanced mechanical durability and resistance to impact.
Micro switches are known for their fast response time due to their snap-action design. However, it’s important to select a switch with the appropriate activation speed for your application. Some switches are designed for high-speed operations, while others are better suited for slow-motion applications.
Additionally, consider how the switch responds to actuation. For example, some micro switches offer a “momentary” action (activating only when pressed), while others offer a “latching” action that remains in one state until reset. Choose the switch that aligns with the desired operational behavior of your system.
Now that we’ve discussed the key factors, here’s a quick checklist to help you choose the right micro switch for your needs:
Define the purpose: Understand what the switch is meant to do (e.g., detecting position, limiting motion, controlling circuits).
Choose the appropriate actuation type: Decide whether you need a plunger, roller, lever, or side push actuated switch based on your application’s mechanical setup.
Consider electrical ratings: Ensure the switch can handle the required voltage and current levels in your system.
Examine size and mounting options: Select a switch that fits within the design constraints and offers easy mounting and integration.
Account for environmental conditions: Choose a switch that is durable enough for the operating conditions, including temperature, humidity, and exposure to chemicals.
Evaluate the mechanical life: Ensure the switch will withstand the required number of operations over time.
Choosing the right micro switch is a crucial step in ensuring the reliable operation and safety of your equipment. By considering factors like actuation type, electrical ratings, size, environmental conditions, and durability, you can select a micro switch that perfectly fits your application. With the right micro switch, you can enhance the performance, longevity, and efficiency of your systems, ensuring a smooth, trouble-free operation for years to come.
