TBSN-310 10A Surface mounting M3.5 Power Push Button Switch
■ Metal series shell
■ Plastic series shell
Technical Parameters

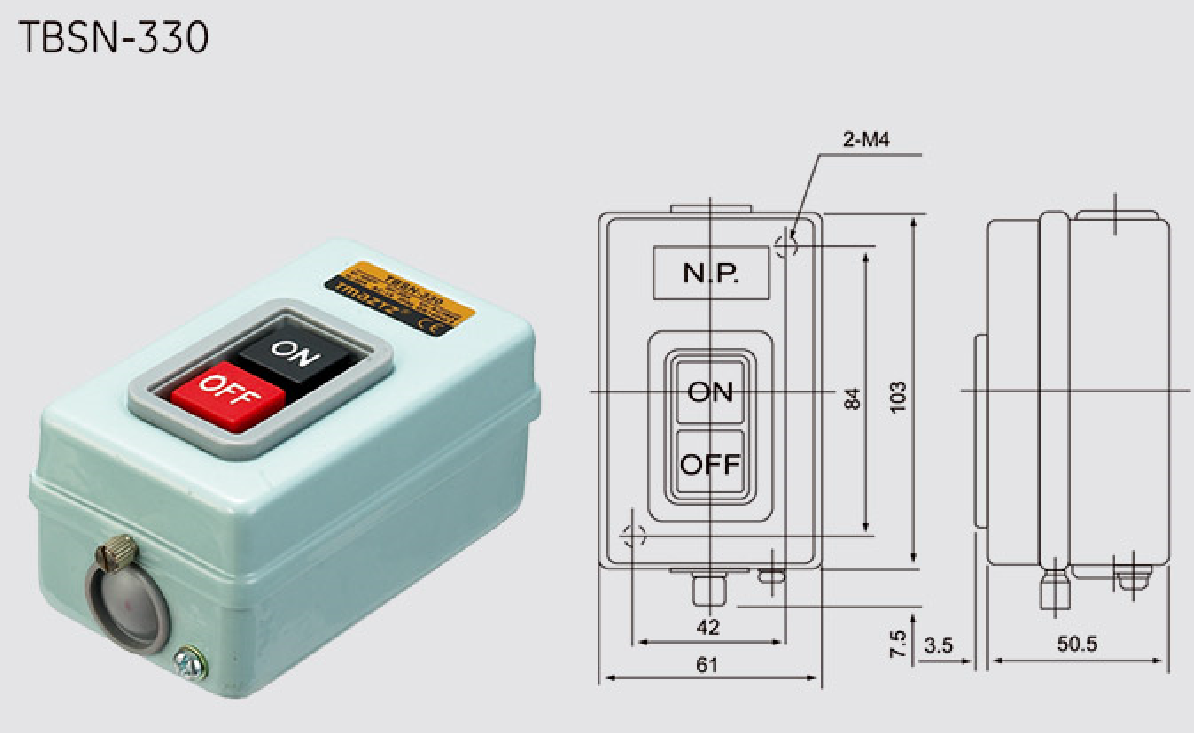

Q1: What's the difference between TBSN-310, TBSN-315 and TBSN-330 |
A1: The Max current is 10A, 15A and 30A |
Q2: Can I buy a TBSN-330 switch as a universal model |
A2: In most situation it can works, but the size of TBSN-330 is bigger than TBSN-315, than TBSN-310, So if you can't change the mounting size, we still suggest a smaller current model. Also save the cost. |
Characteristics
Model | Spec | Mounting type | Connection terminal | Material |
TBSN-310 | 3φ10A 1.5KW | Surface mounting | M3.5 | Iron |
TBSN-315 | 3φ15A 2.2KW | M4 | ||
TBSN-330 | 3φ30A 3.7KW | M5 | ||
TBSP-315 | 3φ15A 2.2KW | Surface mounting | M4 | Plastic |
TBSP-330 | 3φ30A 3.7KW | |||
TBSY-315 | 3φ15A 2.2KW | Flush mounting | M4 | Iron |
TBSY-330 | 3φ30A 3.7KW | |||
TBSS-315 | 3φ15A 2.2KW | Flush mounting | M3.5 | Iron |
TBSS-330 | 3φ30A 3.7KW | M4 | ||
TPB-2 | 3A 250VAC | Surface mounting | M4 | Plastic |
TPB-3 | 3A 250VAC |
