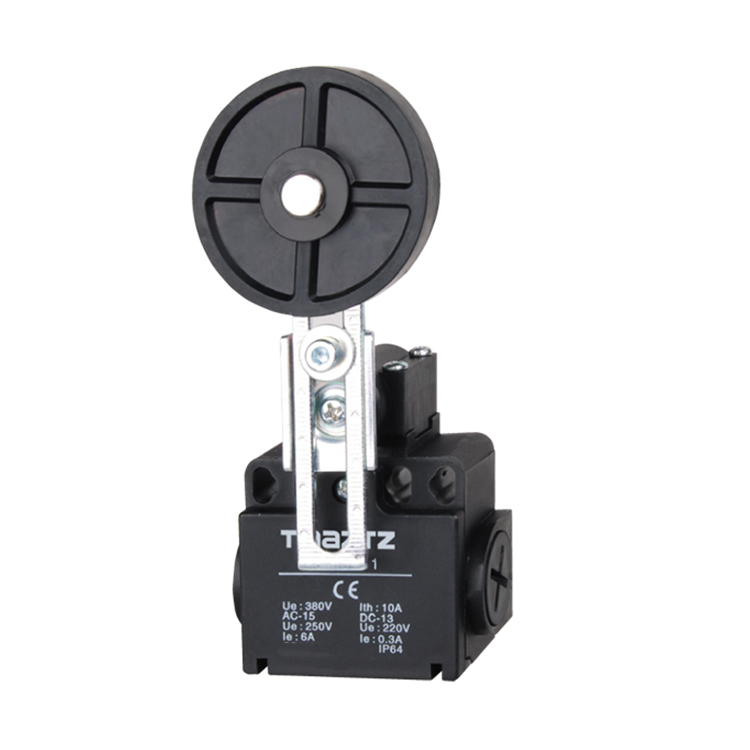

TLS-391 adjustable big rubber wheel limit switch
■ Economical & plastic type;
■ Stainless steel roller, punch and spring;
■ Swing amplitude, extra large±95°;
■ M18x1.5 cable gland that can be equipped.
■ Contact Form:
Product List
Technical Parameters
Characteristics
| Operation speed | 0.5mm-50cm/sec |
| Operating frequency | Electical: 30 operations/minute |
| Contact resistance | 25mΩ max. (initial value) |
| Insulation resistance | 100MΩ Min. (below 500VDC) |
| Dielectric Strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
| Vibration | 10-55Hz,1.5mm double amplitude |
| Shock | Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) |
| Ambient Temperature | -10~+65℃ (With no icing) |
| Humidity | <95% RH |
| Weight | About 59 to 72g（TLS-1） About 72 to 123g（TLS-3） |
| Electrical Life | Above 500000 |
| Degree of protection | IP65 |
Operating Characteristics
| Operating Characteristics | Model TLS | 101 301 | 103 303 | 111 311 | 121 321 | 127 327 | 131 331 | 161 361 | 171 371 | 181 381 | 191 391 |
| Operating force | OF (Max) | 6.86N | 6.86N | 6.86N | 4.9N | 6.86N | 4.9N | 0.98N | 0.98N | 0.98N | 4.9N |
| Release force | RF (Min) | 1.96N | 1.96N | 1.96N | 0.98N | 1.96N | 0.98N | 0.392N | 0.392N | 0.392N | 0.98N |
| Pre-travel | PT (Max) | 1.8mm | 1.8mm | 1.8mm | 20° | 1.8mm | 20° | 30mm | 30mm | 30mm | 20° |
| Tripping position | TP±10% | 2.0mm | 2.0mm | 2.0mm | 22.5° | 2.0mm | 22.5° | 22.5° | 22.5° | 22.5° | 22.5° |
| Movement differential | MD (Max) | 1.2mm | 1.2mm | 1.2mm | 10° | 1.2mm | 10° | 14° | 14° | 14° | 10° |
| Over travel | OT (Min) | 4.0mm | 4.0mm | 4.0mm | 75° | 4.0mm | 75° | 20mm | 20mm | 20mm | 75° |
| Total travel | TT (Min) | 5.8mm | 5.8mm | 5.8mm | 95° | 5.8mm | 95° | 50mm | 50mm | 50mm | 95° |
| Rotary indexing | 22.5° | 22.5° | 22.5° |
